DTG Printer Parts

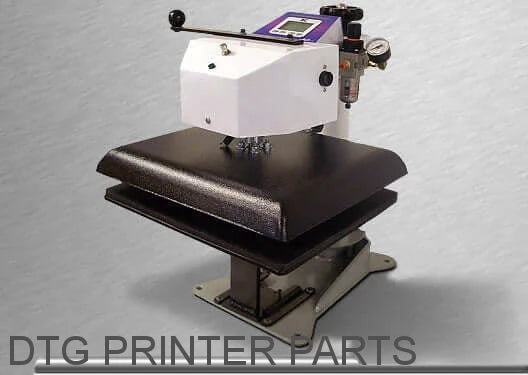

GeoNight Swing-Away DC16AP

Regular price
$2,300.00
Regular price
Sale price
$2,300.00
Shipping calculated at checkout.
14" x 16" Automatic Digital Combo

The Digital Combo DC16AP is an air-operated, automatic 14x16 swing-away heat press with optional interchangeable heat platens and tables. The smooth automatic pressing and pushbutton activationprovides a productive, fatigue-free operation.

For all the same features and possibilities as the Manual DC16, with fully automatic air operated acton, the DC16AP is the ideal solution.

Features

  • Automatic air operated pressing
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-100 PSI range (compressor req)
  • Total applied force of 800 lbs max
  • Interchangeable Heat Platens & Tables
  • Solid steel welded framework
  • SuperCoil-Microwinding™ heater technology
  • Accommodates materials up to 2" thick
  • Temperature readout accuracy +-2°F - can show °C or °F
  • 70 Programmable presets
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen

Warranty

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts

Specs

  • Weight: 140 Lbs
  • Electrical: 1500W / 12A / 120V
  • Dimensions: 23"L x 23"W x 23"H
  • (add $35 for 220V international)
    GeoNight Swing-Away DC16AP
