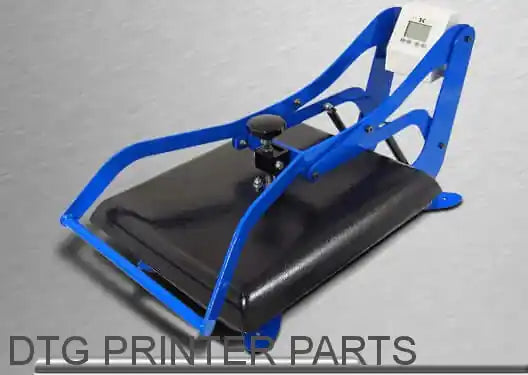

GeoKnight ClamShell DK20

Description

Digital Knight 16x20 Clamshell

Our largest clamshell, the 16x20 DK20 opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing better access than other clamshell presses. The frame support allows operators to slide shirts over the table with complete drape space around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations, and for users who need more portability and mobility than the over-weight swingaway presses.

The DK20 can be easily upgraded to an automatic release press with the "Pop-Up" upgrade. This allows for faster semi-automatic garment production at a very reasonable price. Add to this the twin station upgrade as well, and you have the ultimate clamshell dual station light production machine.

Features

  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Digital Pressure Bar Graph
  • Super-portable light machine weight - 103 lbs !
  • Extreme high pressure capability
  • Hardened high-strength pivot points
  • Interchangeable tables
  • Solid Steel framework
  • SuperCoil-Microwinding™ heater technology
  • Self lifting gas-spring, & wide opening
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen

Warranty

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts

Specs

  • Weight: 103 Lbs
  • Electrical: 1800W / 15A / 110V
  • Dimensions: 36"L x 17"W x 16"H
  • (add $35 for 220V international)
Product form

Digital Knight 16x20 Clamshell Our largest clamshell, the 16x20 DK20 opens for full access to the lower bottom table. It... Read more

Free pickup in our shop(s)

SKU: DK20

$1,599.00

  • Widely used by many customers
  • Trusted
  • Quality Assured
  • Shipped today? Order within: Mar 30, 2023 13:00:00 -0700

Description

Digital Knight 16x20 Clamshell

Our largest clamshell, the 16x20 DK20 opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing better access than other clamshell presses. The frame support allows operators to slide shirts over the table with complete drape space around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations, and for users who need more portability and mobility than the over-weight swingaway presses.

The DK20 can be easily upgraded to an automatic release press with the "Pop-Up" upgrade. This allows for faster semi-automatic garment production at a very reasonable price. Add to this the twin station upgrade as well, and you have the ultimate clamshell dual station light production machine.

Features

  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Digital Pressure Bar Graph
  • Super-portable light machine weight - 103 lbs !
  • Extreme high pressure capability
  • Hardened high-strength pivot points
  • Interchangeable tables
  • Solid Steel framework
  • SuperCoil-Microwinding™ heater technology
  • Self lifting gas-spring, & wide opening
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen

Warranty

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts

Specs

  • Weight: 103 Lbs
  • Electrical: 1800W / 15A / 110V
  • Dimensions: 36"L x 17"W x 16"H
  • (add $35 for 220V international)
